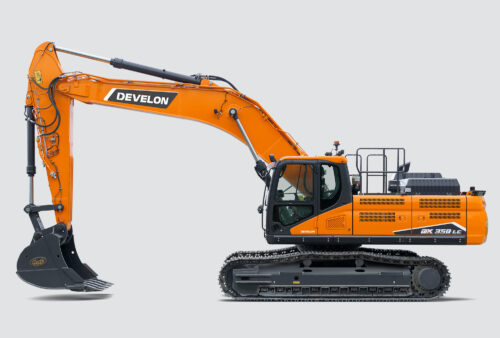

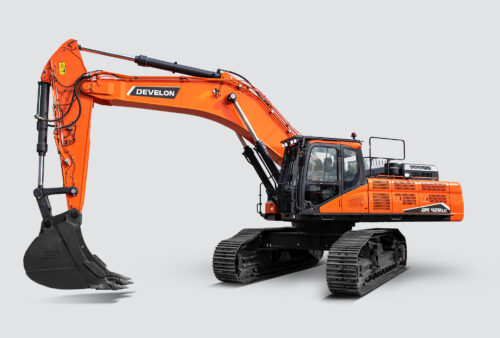

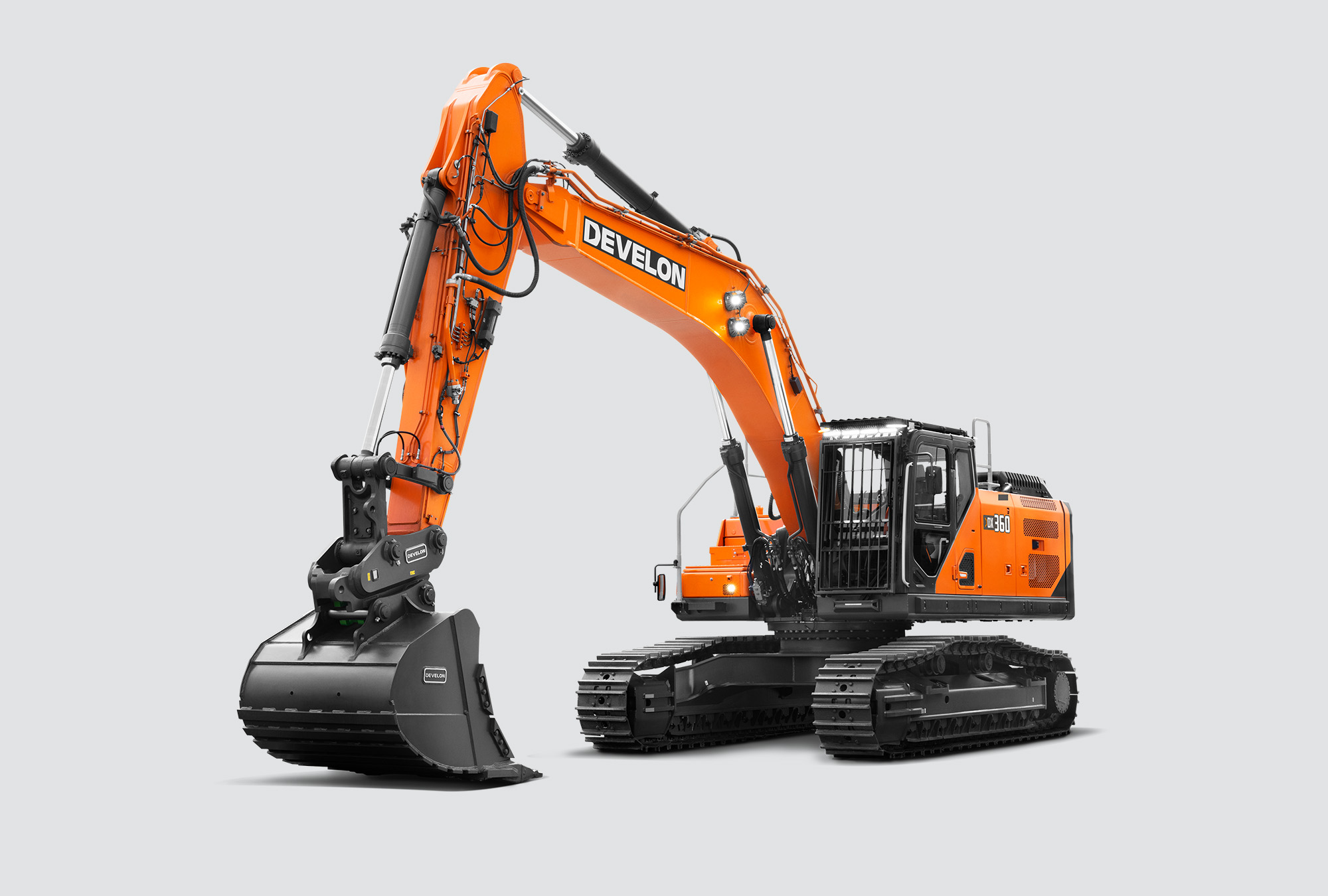

The all-new Develon DX360LC-9 and DX400HD-9 crawler excavators combine powerful lifting, stability, and heavy-duty capability for demanding applications. Ranging from 37 to 42 tons, they offer Develon’s advanced 9 Series features in productivity, safety, operator convenience, and versatility.
Machine Efficiency at its Best
The 9 Series Develon crawler excavators combine the all-new in-house DX08 Develon engine, designed for heavy-duty applications, ensuring superior power density and compliance with strict emission standards. An advanced FEH system and smart assist features help deliver top performance combined with fuel efficiency and operator-friendly productivity.
Safety That Goes the Extra Mile
Develon sets new safety standards with advanced technologies inspired by the car industry, bringing innovation and reliability to the construction sector. From the Smart AVM, which provides a 360-degree view of the job site, to Advanced Lift Assist, which actively monitors lifting capacity and potential tipping hazards, these unique, market-leading features are designed to maximize operator safety and provide peace of mind, no matter how challenging the job site may be.
Versatile, Smooth, and Ready
Develon sets new safety standards with advanced technologies inspired by the car industry, bringing innovation and reliability to the construction sector. From the Smart AVM, which provides a 360-degree view of the job site, to Advanced Lift Assist, which actively monitors lifting capacity and potential tipping hazards, these unique, market-leading features are designed to maximise operator safety and provide peace of mind, no matter how challenging the job site may be.
Machine Specs
| Engine | Develon DX08 |
| Operating weight | 37200 Kg |
| Engine power | 224 kW / 300.4hp |
| Buckets | 2.03 m3 / 1.81 m3 (Long arm) |
| Main pumps max flow | 2 x 360.0 L/min. |
| Number of cylinders | 6 |
| Travel speed (low – high) | 3.7 – 6.0 km/h |
| Maximum gradebility | 70% |
| Maximum torque | 1230.0 Nm @ 1300 rpm |
